The 4 In 1 Waterproof Rosenberger Mini Fakra Cable integrates four channels into a single interface, achieving IP67 protection and providing high-density, reliable signal transmission for multi-antenna systems in harsh environments. PCM Cable # : PCM-ZC-0037

Glaoigh Linn

Siopa Ar Líne:www.premier-cable.store

Orduithe Beaga: Ceannaigh ar líne ar phraghas miondíola

Orduithe Bulc: Déan teagmháil le díolacháin le haghaidh praghsanna toirte

Cur síos

Glaoigh Linn

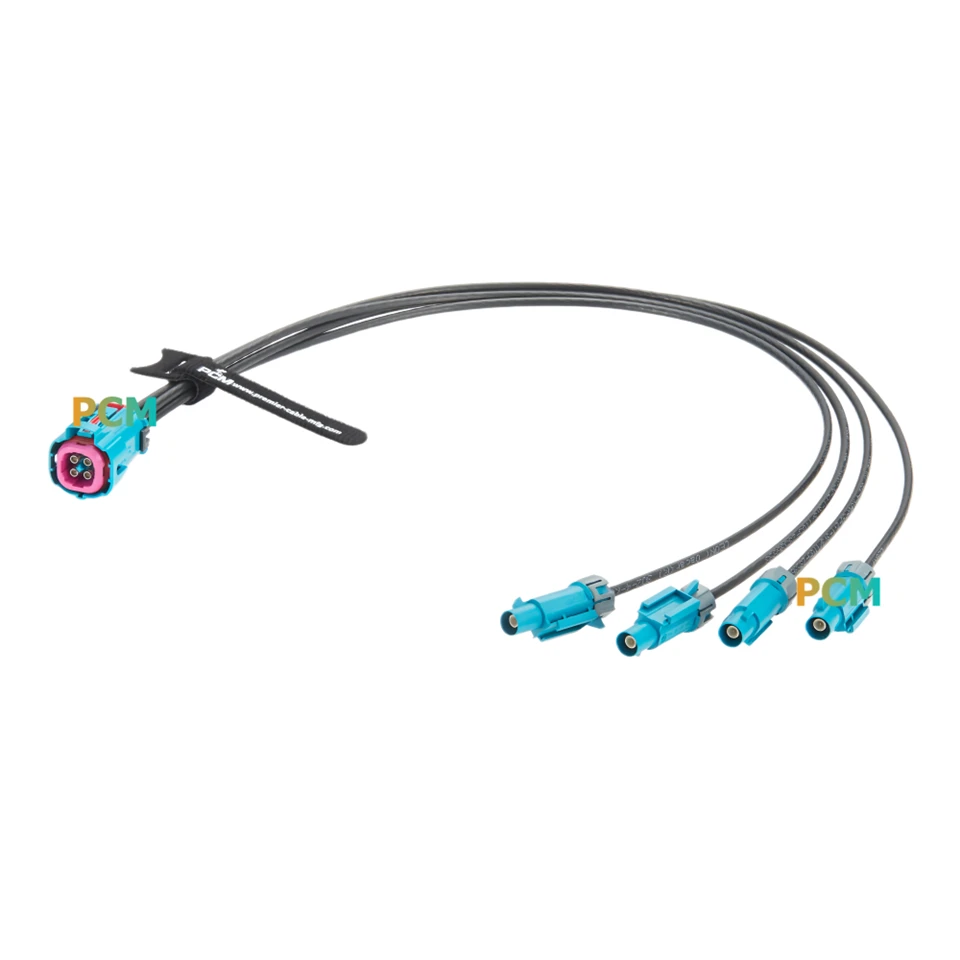

4 In 1 Waterproof Rosenberger Mini Fakra Cable

This 4-in-1 waterproof Rosenberger Mini Fakra RF coaxial cable is a highly integrated and reliable connection solution designed for automotive multi-antenna systems. It integrates four independent Mini Fakra (AMK14K-1M4Z5-Z) RF channels within a compact composite interface, significantly saving installation space on automotive modules (such as T-Boxes and multi-band antennas) and simplifying wiring complexity compared to using single-channel connectors. The other end uses a Rosenberger 59Z176-C01-Z connector. The interface features a precise, one-piece sealed design, ensuring IP67 protection. The PCM-ZC-0037 internally uses four independent low-loss coaxial cables, guaranteeing high signal isolation between channels within the DC-6GHz frequency range.

	Waterproof Rosenberger Mini Fakra Cable 4 In 1
Part No.	PCM-ZC-0037
Connector 1	Rosenberger Mini Fakra AMK14K-1M4Z5-Z Female
Connector 2	Rosenberger 59Z176-C01-Z Male
	Leoni Dacar 302-4 Coaxial Cable
	50 Ohm
	DC-6GHz
	110N

	IP67

Multi-band Vehicle Antenna System

Suitable for shark fin antenna modules or external combined antennas. These antennas typically integrate multiple functions such as 4G main diversity, AM/FM, and SDARS satellite audio. This four-in-one cable integrates multiple RF signals from the antenna end and transmits them to the vehicle's head unit through a single composite cable, simplifying the wiring complexity between the antenna and the head unit.

High-Precision Positioning and Navigation Module

For dual-band or multi-band GNSS receiving systems. For scenarios requiring simultaneous processing of multiple frequency band signals such as GPS, GLONASS, BeiDou, and Galileo, this cable provides multiple independent channels within a single interface, ensuring navigation signal integrity and low crosstalk.

Adapts to multiple cameras in an surround-view (AVM) system. Although currently specified as DC-6GHz, the Rosenberger Mini Fakra also supports video transmission. This waterproof cable can be used to connect front, rear, and side cameras, and its IP67 rating is particularly suitable for installation in humid environments near rearview mirrors or license plate lights.
